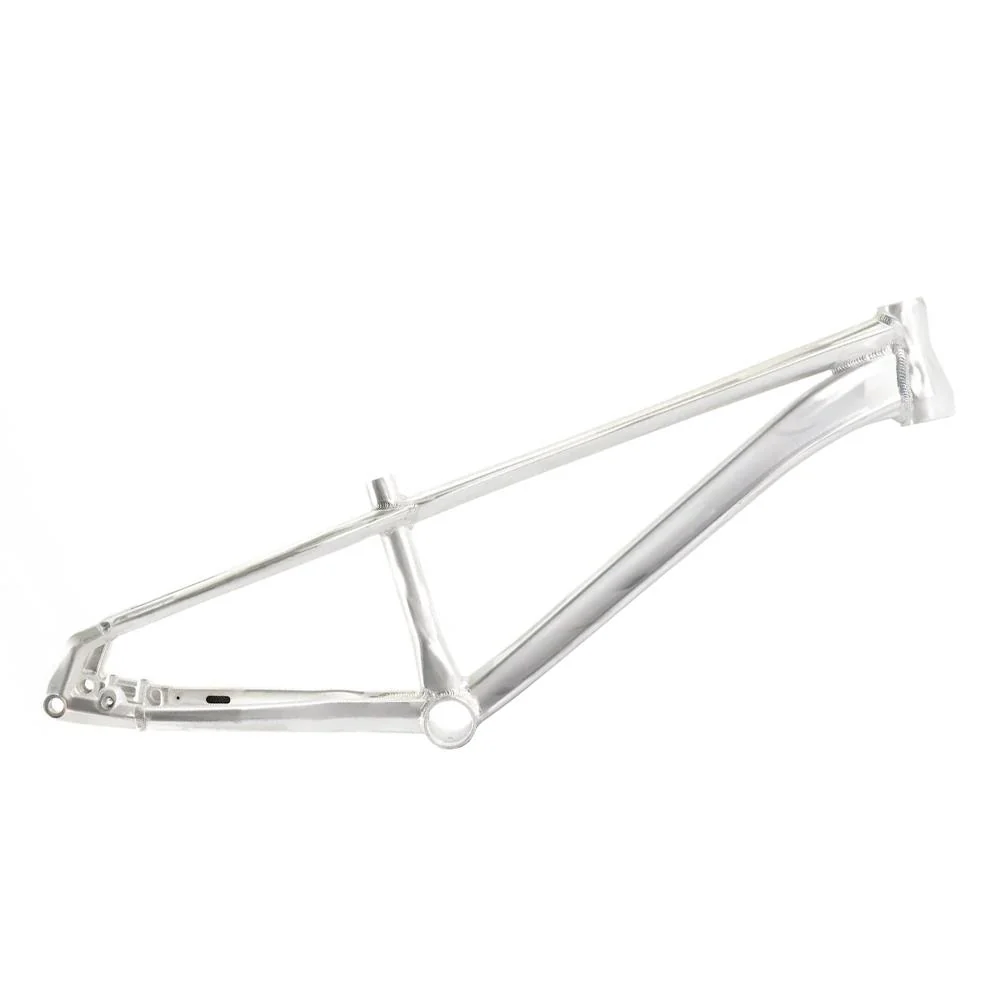

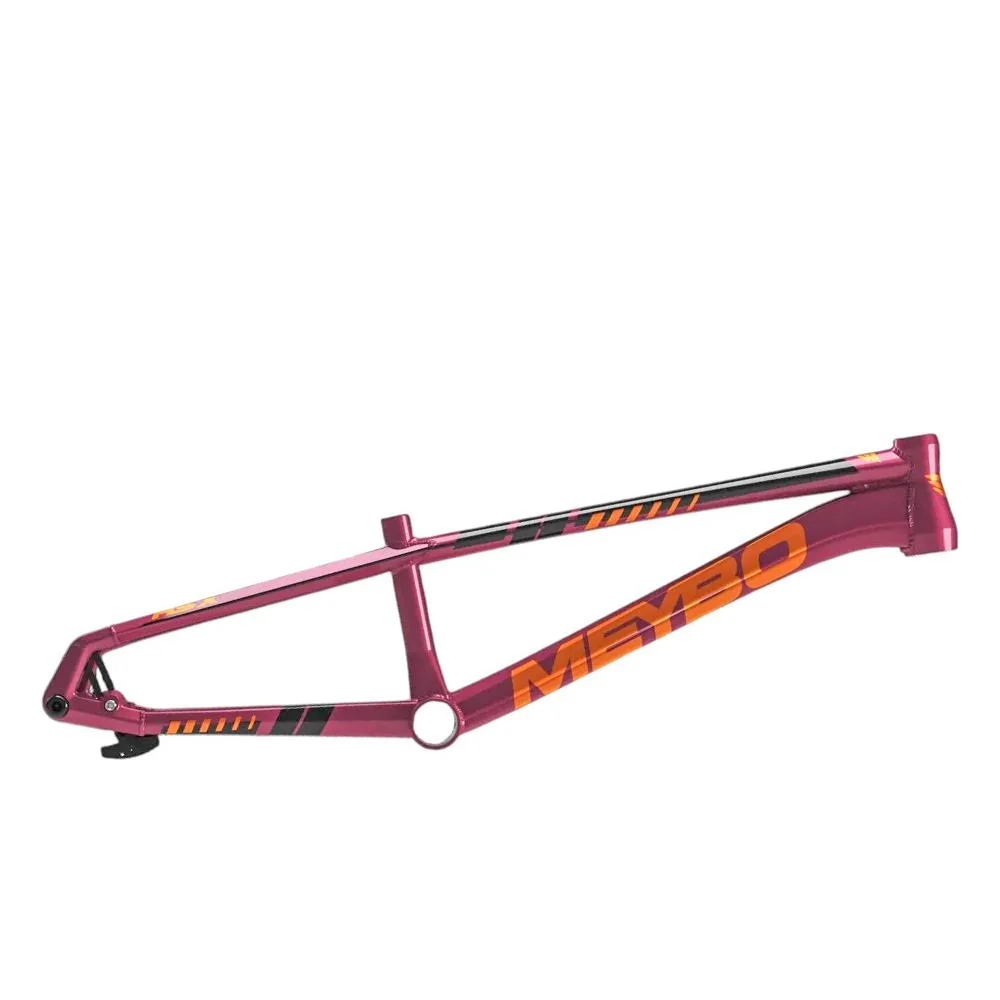

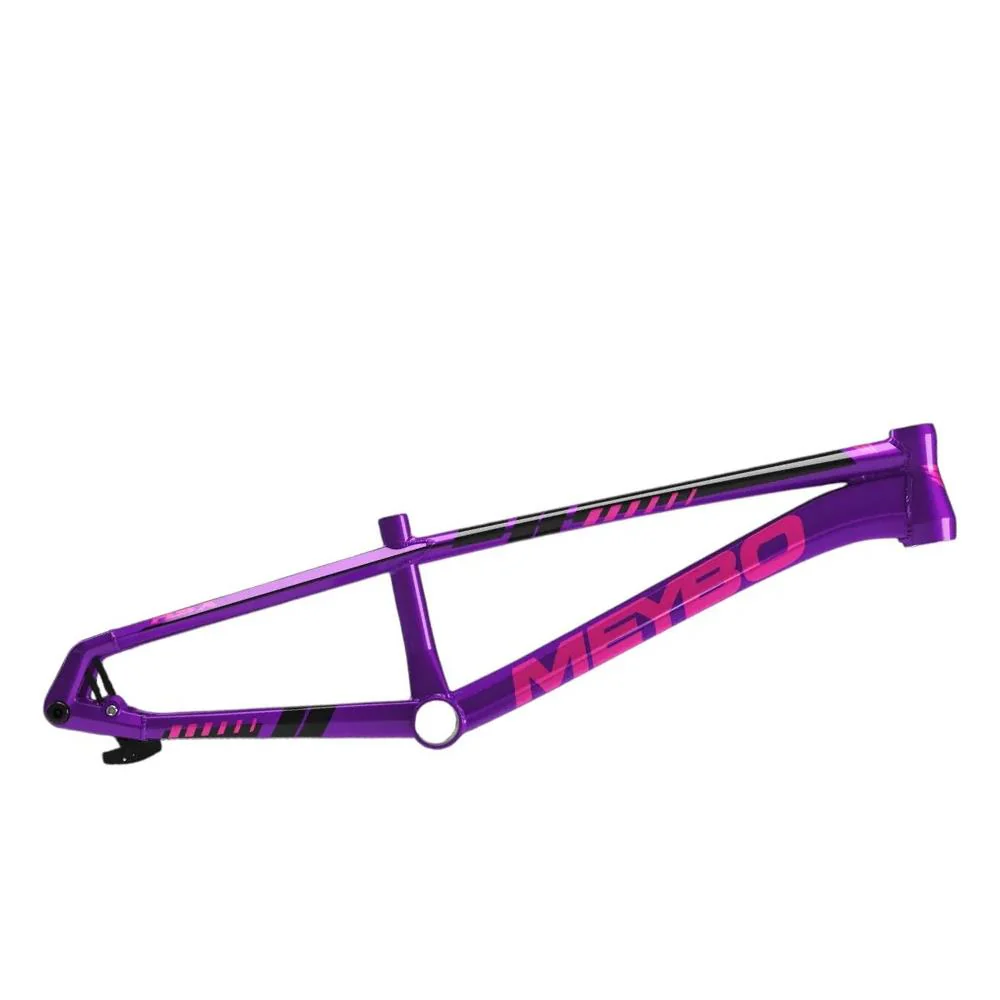

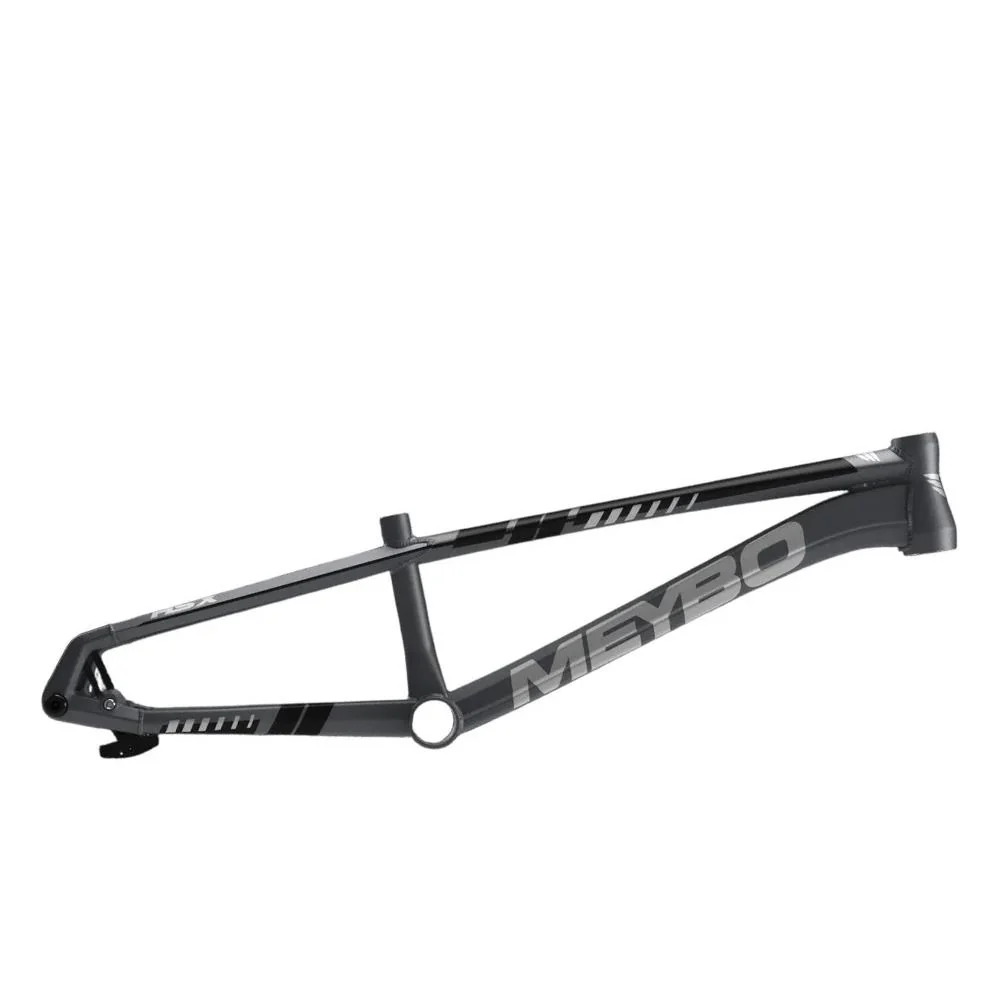

Meybo HSX Alloy 2026 Bmx Race Pro XXXL Frame

The 2026 Meybo HSX Alloy frame has redisigned tubes and head tube to make this the best alloy race frame within the Meybo line-up.

It has the same geometrie as the carbon version and therefore the same great ride characteristics. That is why the Meybo HSX Alloy is the best alloy frame out there.

Meybo HSX frame features include:
6061 T-6 multiple butted hydroformed tubing;
1.5 tapered headtube; (Pro 21 and bigger sizes)
Wide BB shell for optimal stiffness;
Disc brake directly mounted on to the frame;
Meybo solid chainstay with fixed 15mm rear drop outs;
- Ensures you always have the same chainstay length, whatever gear you run!
- Easy, fast and straight mounting of your rear wheel!
Meybo chain tensioner system;
7005 CNC 15mm rear axle;
Sizes: Expert, Expert XL, Pro 21, Pro 21.5, Pro 22, Pro 22.5, Pro 23, Cruiser.

Please note:
Can be run with OS wheels
Junior, Expert and Expert XL feature a BB86 bottom bracket. All other Pro and Cruiser sizes feature a BB386 bottom bracket.

###section###

Product Specs

1. MATERIAL: 6061-T6 Alloy
2. TOP TUBE LENGTH: 22.48"
3. HEAD TUBE ANGLE: 74°
4. SEAT TUBE ANGLE: 71°
5. CHAIN STAY LENGTH: 15.47"
6. BB HEIGHT:
7. WHEEL SIZE: 20"
8. STANDOVER HEIGHT:
9. DROPOUT SIZE: 15mm
10. HEADSET TYPE: Tapered Integrated
11. BB TYPE: BB386
12. SEAT TUBE DIAMETER:
13. BRAKE MOUNTS: Welded
14. WEIGHT: 3.78lbs (1714g)

###section###

Product Highlights

• BMX Racing specific geometry
• Race specific frame
• Strong and lightweight alloy construction
• Lightweight hydroformed tubing
• Disc brake mounts
